LilyGO® T-Display-S3~
Warning
The configuration for this board is under development and not finilized yet.
LILYGO® T-Display-S3 ESP32-S3 1.9" ST7789 LCD Display Development Board WIFI Bluetooth5.0 Wireless Module 170*320 Resolution
T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9" LCD color screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.
Specifications~
| Pros | Cons |
|---|---|
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5 + BT mesh |
| Flash | 16MB |
| PSRAM | 8MB |
| Bat voltage detection | IO04 |
| Onboard functions | Boot + Reset + IO14 Button |
| LCD | 1.9" diagonal, Full-color TFT Display |
| Drive Chip | ST7789V |
| Resolution | 170(H)RGB x320(V) 8-Bit Parallel Interface |
| Connectors | JST-GH 1.25mm 2PIN STEMMA QT / QwiicJST-SH 1.0mm 4-PIN |

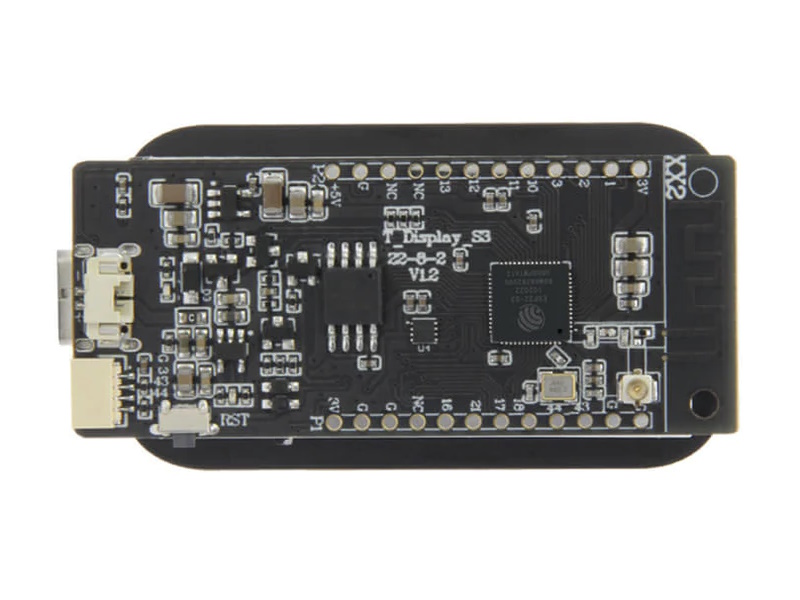

Touch Edition~
ESP32-S3 1.9" ST7789 LCD Display with Touch Screen Development Board.
Basic Edition~
The Basic Edition of the LilyGO® T-Display-S3 does not have a touchscreen. It can only be used to display information. You can not interact with objects on the screen.
However, you can connect GPIOs and/or use the push buttons to integrate the device into your Home Automation system.
Documentation~
Documentation~
Please visit the Waveshare Wiki pages for more information, schematics and demo code:
