ESP32 Terminal 3.5" ~

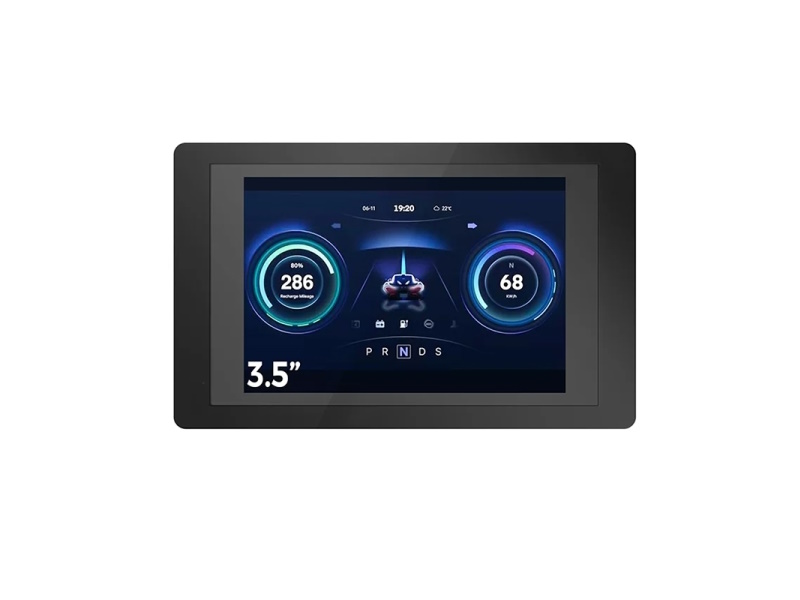

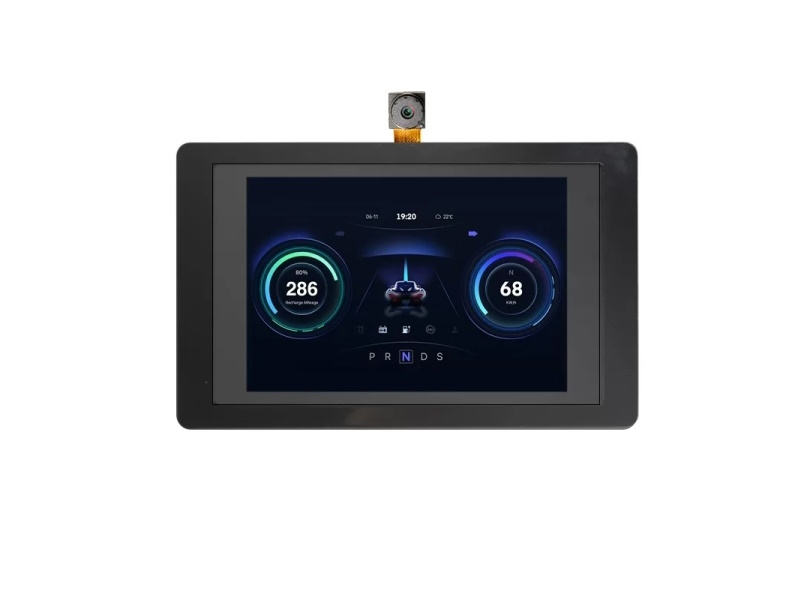

The CrowPanel ESP32 terminal is a display device based on the ESP32-S3 microcontroller. This ESP32 terminal uses an acrylic shell, which can not only protects the screen but also makes it more beautiful. The size is only pocket size, small and portable; two M3 fixing holes are easy to fix, making it easier for you to set up your project.
Models~
| Model | 3.5" RGB | 3.5" SPI |
|---|---|---|
| SKU | DLC35010R | DLC35020S |
| MCU | ESP32-S3 | ESP32-S3 |
| Flash | 16 MB | 16 MB |
| PSram | 8 MB | 8 MB |
| Resolution | 320x480 | 320x480 |
| Touch Screen | Capacitive | Capacitive |
| SD Card |  yes |
yes |
| Screen dimming | yes |
yes |
| Buy | Buy |
The SD card, buzzer, microphone and camera are not supported by openHASP 0.7.0-rc11.
ESP32-S3 Modules have PSram and are more suitable for loading fonts, and graphics.
Video~
ESP32 Terminal Comparison~
Flashing~
Also available via web installer at https://nightly.openhasp.com/
or the latest found under Github Actions, click on the latest action, and look under the Assets sections for zip files containing builds binary files.
Recommended method~
-
Use the
Nightlybuild website to initially flash the device. -
Then update with the OTA file found under
Actions,Assetson github. Or compile your own if comfortable doing that.
